Grammar of Graphics with Plotnine

• ID: DVP-L05
• Type: Core visualization
• Audience: Intermediate
• Theme: Compose graphics from data, mappings, marks, scales, and facets

Plotnine brings a grammar-of-graphics approach to Python. Rather than selecting a finished chart type, you build a graphic from compatible components. This chapter develops a differential-expression display to show how mappings, geoms, scales, statistics, coordinates, facets, and themes form one coherent specification.

Learning objectives

By the end of this chapter, you should be able to:

• describe the main components of a grammar of graphics;
• distinguish mapped aesthetics from fixed properties;
• layer geoms without duplicating data preparation;
• control scales, guides, facets, and themes;
• recognize implicit statistical transformations; and
• save a Plotnine graphic reproducibly.

A graphic as a specification

from plotnine import aes, geom_point, ggplot

p = (
    ggplot(data, aes(x="log2_fold_change", y="minus_log10_p"))
    + geom_point()
)

The data supplies variables; aes() maps them to visual channels; a geom draws marks. Additional layers can add thresholds, summaries, labels, and models while preserving a shared coordinate system.

Mapped versus fixed properties

# mapped: status determines point color
geom_point(aes(color="status"))

# fixed: every point uses the same color
geom_point(color="#2563EB")

Putting a literal color inside aes() creates a category and usually an unwanted legend. This distinction is one of the most important habits in grammar-based plotting.

Construct a volcano plot

import numpy as np
import pandas as pd
from plotnine import geom_hline, labs, scale_color_manual, theme_minimal

data = pd.read_csv("data/processed/05-differential-expression.csv")
data["minus_log10_p"] = -np.log10(data["adjusted_p"])

p = (
    ggplot(data, aes("log2_fold_change", "minus_log10_p", color="status"))
    + geom_point(alpha=0.72)
    + geom_hline(yintercept=-np.log10(0.05), linetype="dashed")
    + scale_color_manual(values={
        "Down": "#2563EB", "Not significant": "#94A3B8", "Up": "#DC2626"
    })
    + labs(x="log2 fold change", y="-log10 adjusted p")
    + theme_minimal()
)

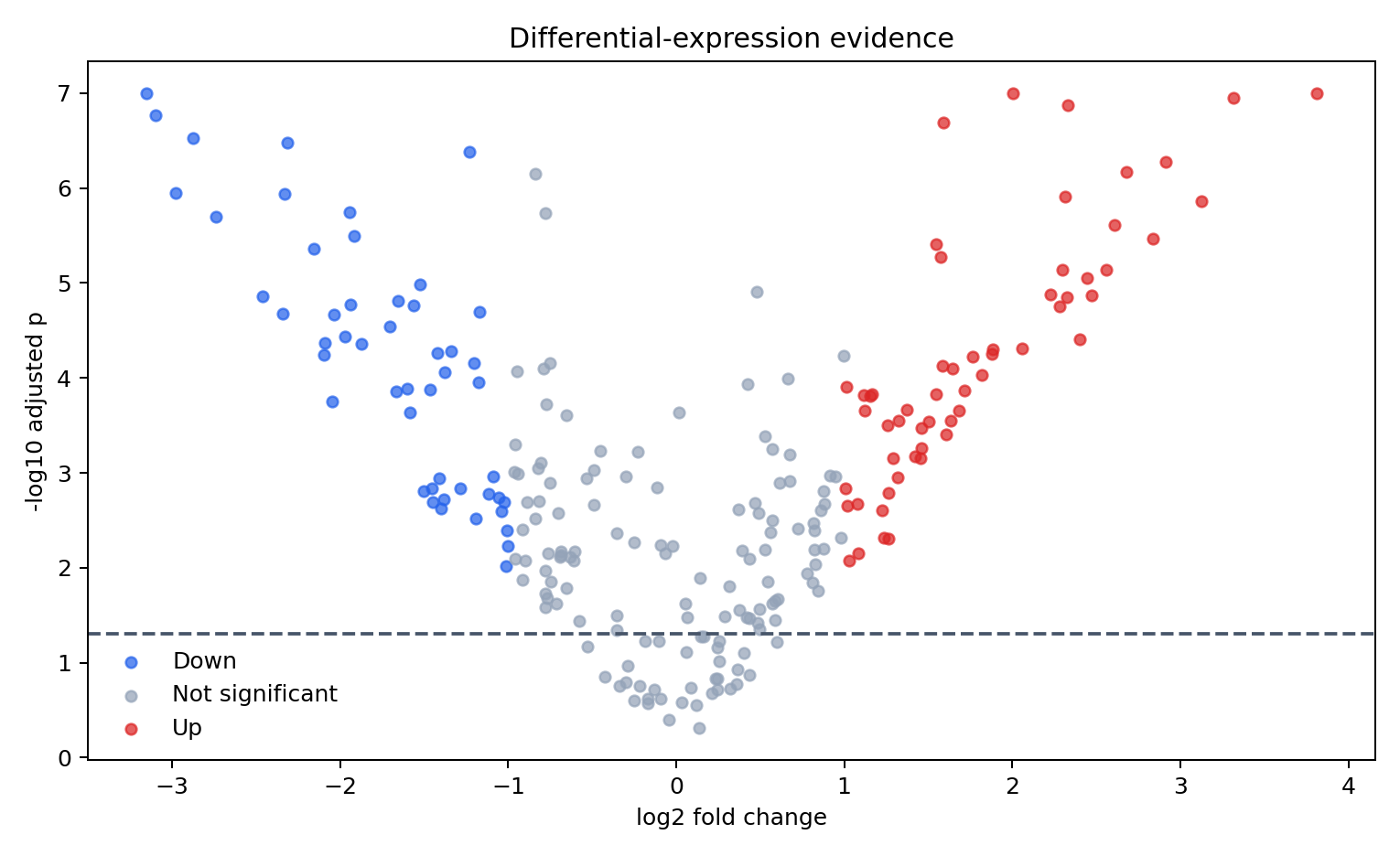

Figure 7.1: A layered differential-expression volcano plot.

The horizontal rule encodes the adjusted-p threshold. The status classification also requires an effect-size threshold, so the legend communicates a derived analytical rule rather than a raw field.

Statistics and geoms

Many geoms apply an implicit statistic. A bar chart may count rows; a boxplot calculates quartiles; a smoother fits a model. Make that transformation explicit in your interpretation.

from plotnine import geom_smooth

p + geom_smooth(method="lowess", se=False, color="#0F172A")

A smoother reveals broad structure but can distract from thresholds in a volcano plot. Layers are easy to add; that does not mean every layer strengthens the argument.

Facets as small multiples

from plotnine import facet_wrap

p + facet_wrap("~pathway")

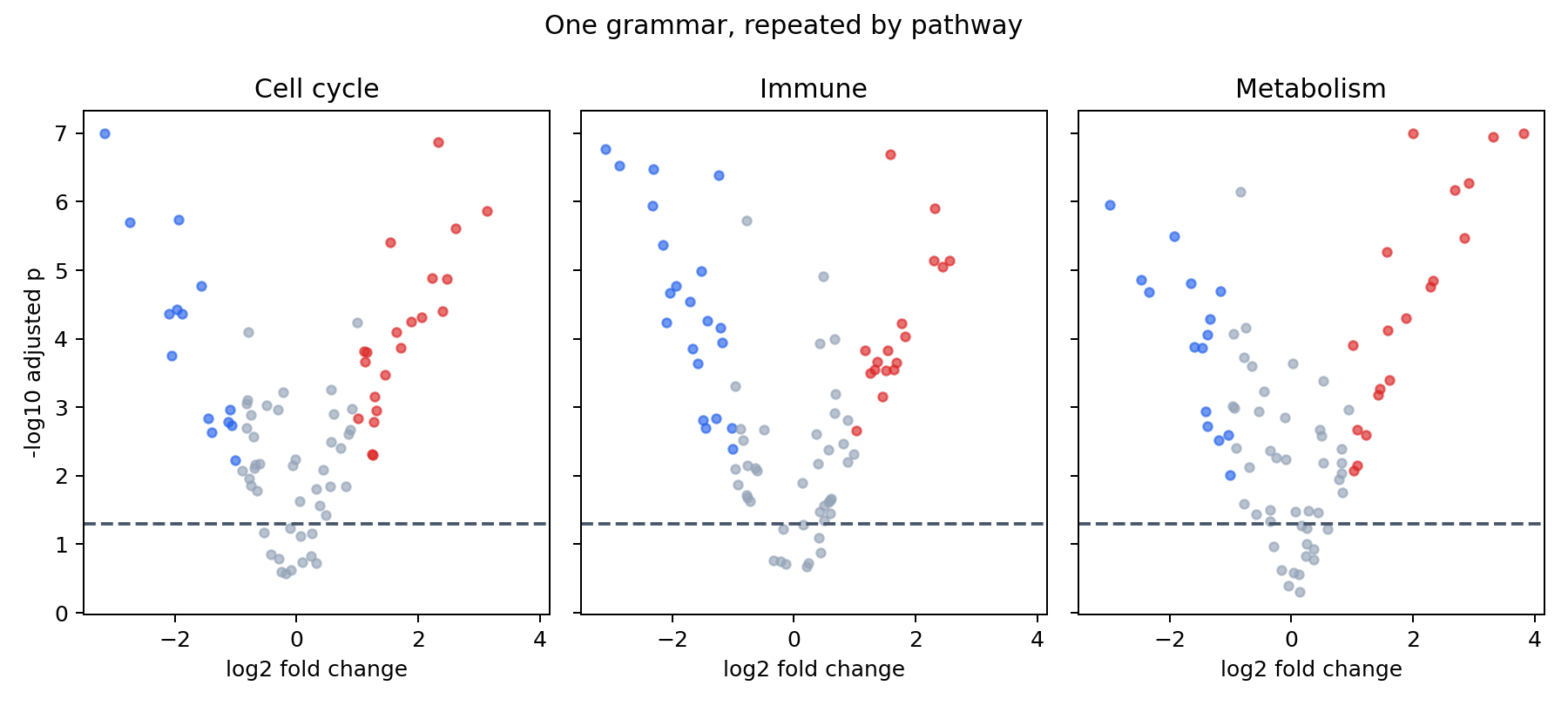

Figure 7.2: The same mappings repeated across three pathway facets.

Faceting preserves the visual grammar while partitioning the data. Fixed scales support direct comparison; free scales reveal within-panel structure but weaken cross-panel magnitude comparisons.

Scales, coordinates, and themes

Scales translate data values into visual values and create axes or legends. Coordinates determine how positions are displayed. Themes govern non-data ink.

from plotnine import coord_cartesian, theme

p + coord_cartesian(xlim=(-4, 4)) + theme(legend_position="right")

coord_cartesian() zooms without discarding observations before statistical calculations. Filtering the data or setting destructive scale limits can change computed summaries.

Save the specification

p.save(
    "results/figures/05-volcano-grammar.png",
    width=8.5, height=5.2, dpi=300,
)

Pin package versions in requirements.txt; grammar implementations evolve, and a reproducible figure depends on software as well as data and code.

Reproduce the chapter

bash scripts/bash/05-generate-plotnine-visualizations.sh

The script writes 240 gene records, two figures, and results/05-plotnine-figure-manifest.csv.

Chapter practice

1. Add direct labels for the five strongest significant genes.
2. Compare fixed and free facet scales, and explain which claim each supports.
3. Replace color-only status encoding with an accessible redundant encoding.

Key takeaways

• Think in composable layers rather than finished chart types.
• Keep mapped aesthetics separate from fixed properties.
• Understand the statistical transformation performed by every layer.
• Use facets to repeat one visual argument across meaningful subsets.
